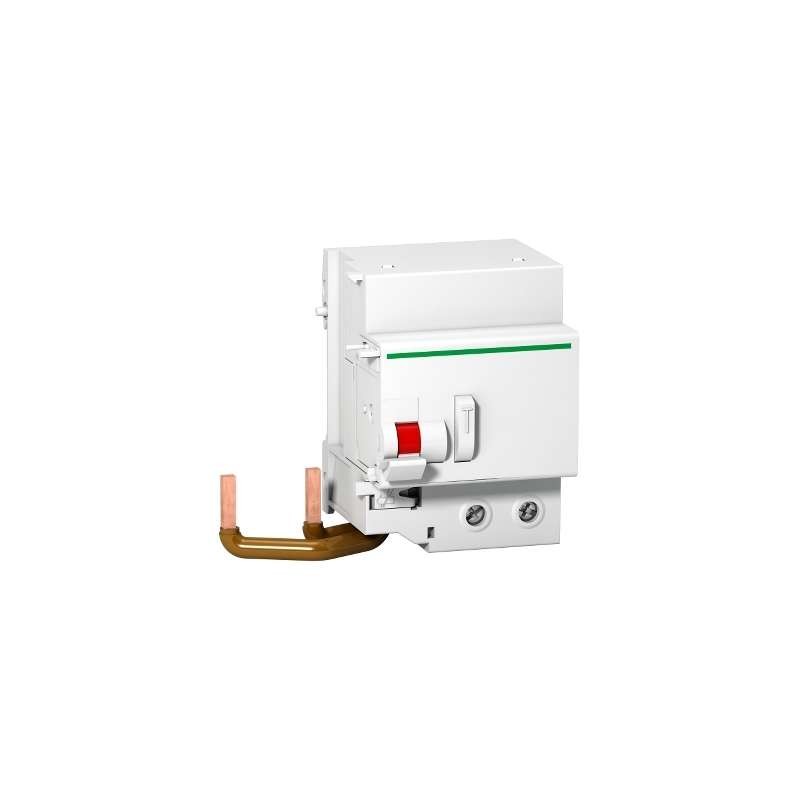

Schneider A9N18564 Differential Block Vigi C120 2P 125A 300mA Type AC
Specifications
| Brand | Schneider |
| Unit Type | Differential |
| Model | Schneider differential |
| Kit Quantity | Ask for availability |
| EAN | 3606480376276 |
Acti9 Vigi C120 is an additional modular residual current device. It has 2P with 2 protected poles, the rated current is 125A and the operating voltage is from 230VAC to 415V AC. The earth leakage protection class is AC type with a sensitivity of 300 mA and voltage independent technology. This product protects against short circuits, wire overloads, electric shock from indirect contact and fire hazards. This product complies with EN 61009. The electrical resistance reaches up to 20000 cycles. The nominal operating voltage Ue is between 230VAC and 415V AC. The rated insulation voltage Ui is 500 V AC. The rated impulse withstand voltage Uimp is 6 kV. The pollution degree is 3. Can be mounted on 35mm symmetrical din rail. Width in 9mm steps is 7. The color of the product is white (RAL 9003).
