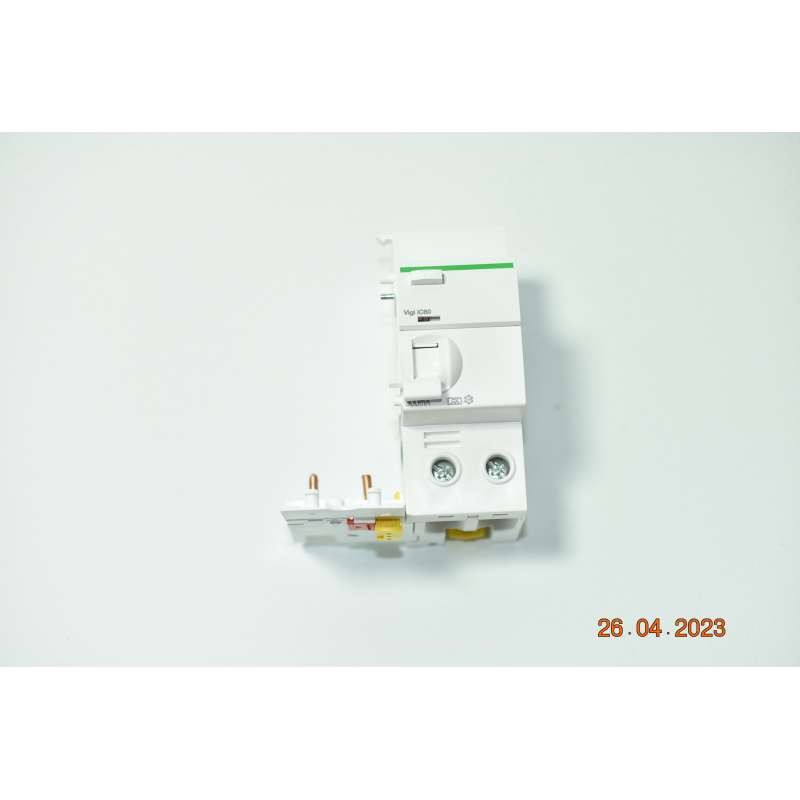

Differential Block Acti 9-Vigi iC60 A9V54263 2P-63A-300mA-Type A
Specifications
| Brand | Schneider |
| Unit Type | Differential |
| Model | Schneider Differential |
| Kit Quantity | Ask for availability |
| EAN | 3606480090684 |
Acti9 Vigi iC60 is a modular additional residual current device. It is a 2P, rated current of 63A, operating voltage from 230VAC to 415VAC according to IEC 61009-1. The earth leakage protection class is type A with a sensitivity of 300 mA and voltage independent technology. This product protects against short circuits, wire overloads, electric shock from indirect contact and fire hazards. A VisiTrip window is here to indicate a fault trip via a red mechanical indicator on the front. It can be combined with iC60 or Acti9 Reflex iC60, to provide protection of people and protection of installations. This product complies with EN 61009-1 and IEC 61009-1. The nominal operating voltage Ue is 230VAC or 400V AC. The rated insulation voltage Ui is 500 V AC. The rated impulse withstand voltage Uimp.
