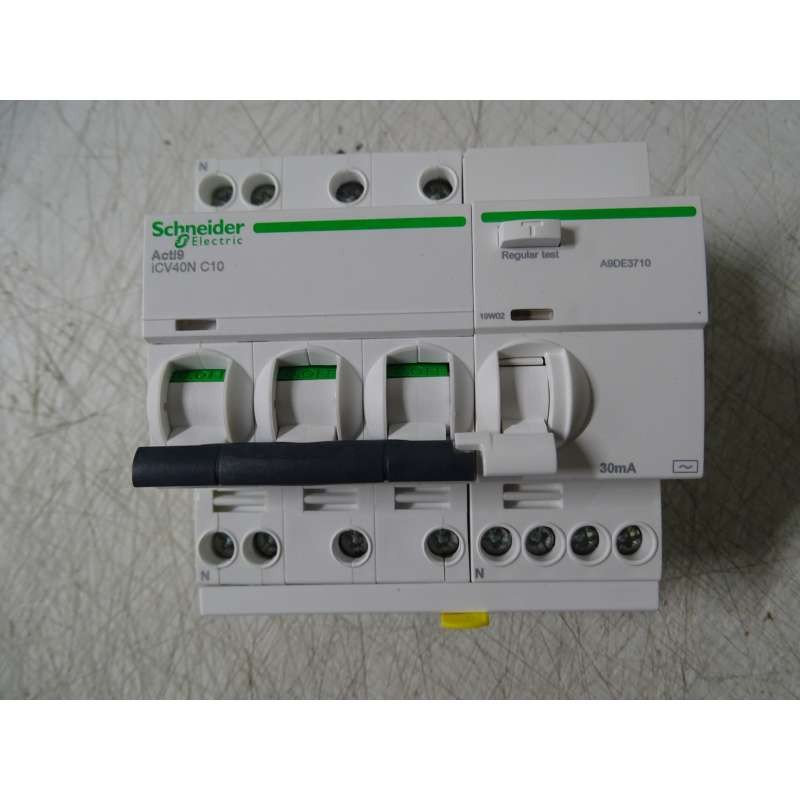

A9DE3710 Differential Switch ICV40N 3P+N C 10A 30mA Type AC Schneider
Specifications
| Brand | Schneider |
| Unit Type | Differential |
| Model | Schneider differential |
| Kit Quantity | Ask for availability |
| EAN | 3606481328717 |
This Acti9 iCV40 is a modular residual current circuit breaker with overcurrent protection (RCBO). It is a 3P+N automatic switch with 3 protected poles, rated current In of 10A and tripping curve C. The protection class against earth leakage is AC type with sensitivity of 30 mA. The earth leakage protection delay is instantaneous. The rated short-circuit breaking capacity Icn is up to 6000A according to EN/IEC 61009-2-1. This product protects against short circuits, wire overloads, electric shock from indirect contact and fire hazards. Its 2 exclusive Visitrip indicators reduce response time by showing the faulty circuit and quickly identifying the type of default setting. The green Visisafe strip guarantees the physical opening of the contacts to allow downstream maintenance. This product.
